SPOOLTENNA

Frequency:

• 7.0 - 7.3 MHz (40M)
• 14.1 - 14.35 MHz (20M)
• 21.0 – 21.45 MHz (15M)
• 28.0 – 29.7 MHz (10M)

Power: 100W SSB, 50W CW & digital

Dimensions:

• Diameter=120mm (4.72")
• Thickness=~25mm (0.98")

Weight: 12oz

Length:

• Prebuilt = ~60ft 20 AWG tinned copper wire
• Kit = 70ft 20 AWG tinned copper wire

Note: Prebuilt antenna is factory-tuned, with additional length available for end-user final tuning.

RF Connection: Right-angle BNC female

• Center hole - 6mm (approximately 1/4") for quick deployment using a standard screwdriver as an axle (screwdriver not provided)
• Winding knob for easy set up and tear down
• Two finger holes in the back for easy grip
• 4mm banana jack for quick connection/disconnection of radiating element
• 10mm mounting holes on face and back side of the product for mounting or hanging flexibility
• Right-angle BNC connector to align with feedline direction
• Matching circuit captive within the barrel of the spool to protect circuit components

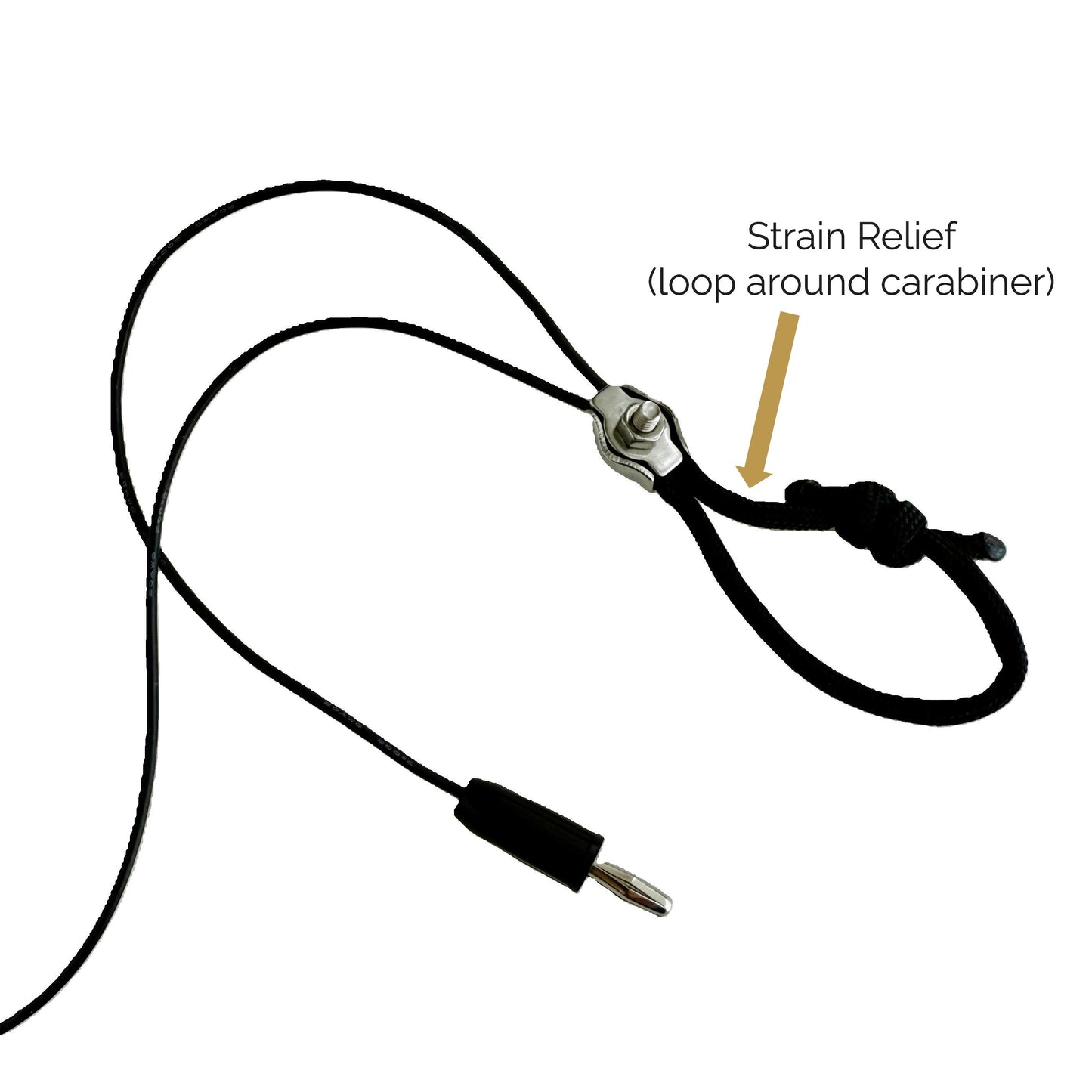

• Strain relief loop on both ends of the radiating element
• Supplied with BongoTies® tie for retaining wire on the spool
• UV stabilized barrel

Prebuilt Includes:

• SPOOLTENNA PARKS-EFHW4010 (assembled unit)
• Owner's Manual
• OPTIONAL: RG-316 25' coax with 5 ferrites (sold separately)

Kit Includes:

• Boards, front and back (2)
• Spool barrel (1)
• BNC connector (1)
• Toroid (1)
• Banana jack (1)
• Banana plug (1)
• Capacitor (1)
• Nylon screws - M3 x 10mm (8)
• Nylon spacers - M3 x 20mm (4)
• Cable clamps - M3 (2)
• 70' antenna wire - 20 AWG (1)
• 3' transformer wire - 18 AWG (1)
• Paracord loop (2)
• Carabiner (1)
• Tie wraps (2)
• BongoTies® tie (1)
• Steel screw - M4 x 10mm (1)
• Steel lock washer - M4 (1)
• Flanged bearing - 10 mm (1)
• Knurled knob - M4 (1)
• Assembly Instructions/Owner's Manual
• OPTIONAL: RG-316 25' coax with 5 ferrites (sold separately)
