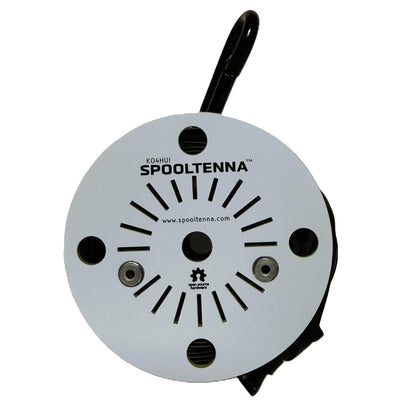

SPOOLTENNA ULTRA-EFHW4010

Frequency:

• 7.0 - 7.3 MHz (40M)
• 14.1 - 14.35 MHz (20M)
• 21.0 – 21.45 MHz (15M)
• 28.0 – 29.7 MHz (10M)

Power: 100W SSB, 50W CW & digital

Dimensions:

• Diameter=76mm (3")
• Thickness=~25mm (0.98")(minus the BNC connector and knob protusions)

Weight: 5.7oz

Length: 65ft insulated 26 AWG high strength, high conductivity Bare Copper Clad Steel (BCCS), UV Resistant Polyethylene jacket

Note: Antenna is factory-tuned, with additional length available for end-user final tuning.

RF Connection: Right-angle BNC female

• Center hole - 8mm (approximately 5/16") for quick deployment using a standard screwdriver as an axle (screwdriver not provided)
• Low-profile winding knob for easy set up and tear down
• Thermal venting on back for high-duty cycle operation
• 4mm banana jack for quick connection/disconnection of radiating element
• 8mm mounting holes on face and back side of the product for mounting or hanging flexibility
• Right-angle BNC connector to align with feedline direction
• Matching circuit captive within the barrel of the spool to protect circuit components
• Strain relief loop on both ends of the radiating element
• Supplied with BongoTies® tie for retaining wire on the spool
• Designed for use with lightweight coax like our with our RG-316 coax feedline with 5 integrated ferrites to choke return RF (available as optional accessory)

Includes:

• SPOOLTENNA ULTRA-EFHW4010
• Field Testing Report for that serial number

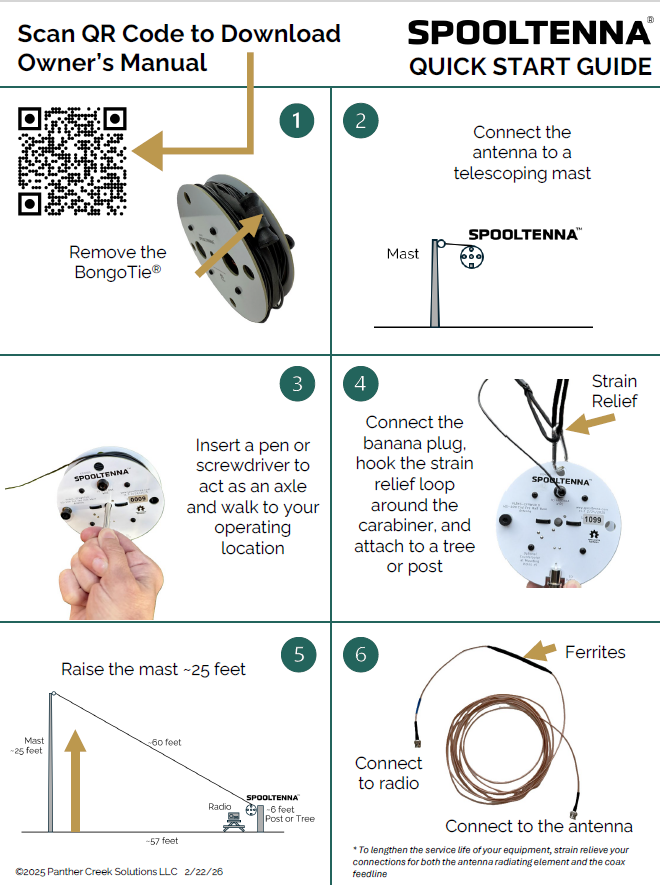

• Quick Start Guide with link to Owners' Manual
